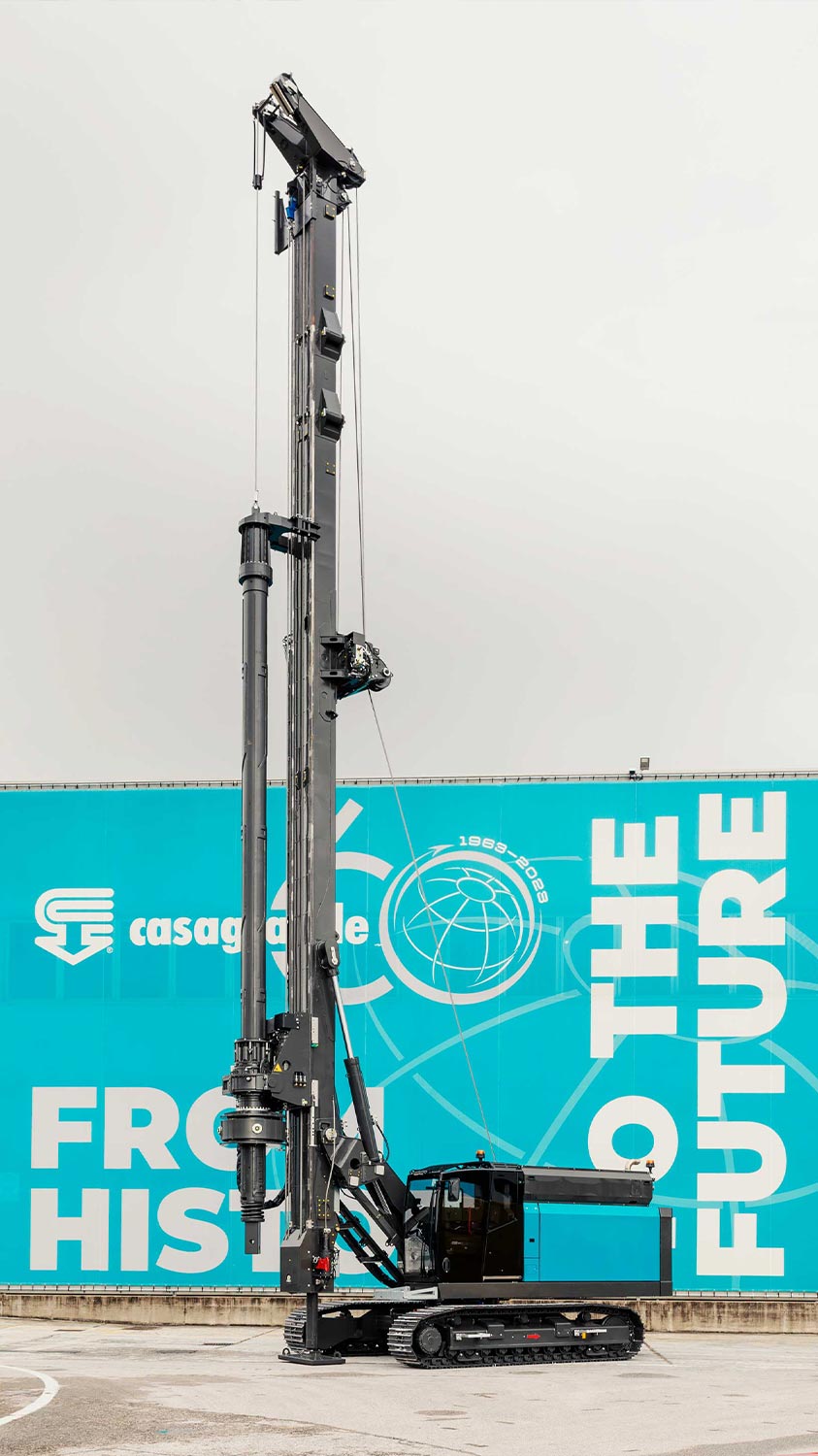

CB16
TECHNICAL SPECIFICATIONS
CB16 | ||
Max depth | 57 m | 187 ft |
Max diameter | 3000 mm | 118 in |
Engine power | 209 kW | 280 HP |
Width of crawler | 2500/3700 mm | 8,2/12,1 ft |
Shoes width | 600 mm | 24 in |
MAIN WINCH | ||
Line pull | 165 kN | 37093 lbf |
AUXILIARY WINCH | ||
Line pull | 73 kN | 16411 lbf |
CROWD – RAM | ||
Extraction force | 130 kN | 29225 lbf |
Crowd force | 205 kN | 46086 lbf |
Stroke | 5200 mm | 17 ft |
CROWD – WINCH | ||
Extraction force | 343 kN | 77109 lbf |
Crowd force | 343 kN | 77109 lbf |
Stroke | 15500 mm | 51 ft |
ROTARY HEAD | ||
Torque | 169 kNm | 124648 lbf·ft |
Drilling speed | 42 rpm | 42 rpm |
WEIGHT | ||
Working condition | 44 t | 97003 lbs |
- SPM control system – Smart Power Management
- 12’’ touch screen display for visualization and setting of drilling parameters 7”auxiliary display to manage diesel engine, cameras and auxiliary systems of the cabin
- Mast lifting and lowering aid
- Drilling depth measurement and automatic mast verticality control
- Automatic idling mode with engine start/stop for fuel saving
- Hook on auxiliary line
- Protective roof guard (FOPS compliant)
- Air conditioning system
- Front platform for service toolbox
- Cabin platform
- Electric refueling pump
- Casagrande Fleet Master remote rig control and monitoring via internet
OPTIONAL EQUIPMENT
- Lateral platform and handrails
- Handrails on upper structure
- Water pre-heating system for starting engine at low – temperatures
- Automatic centralized greasing system
- Radio remote control for rigging, derigging, rig movement and positioning
- Camera for panoramic view of the area around the rig
- Automatic self-alignment of drilling axis
- Transport kit according to required transport configuration
- Smart lowering and overload protection for main winch
- Load cell an auxiliary winch for line pull monitoring
- Drilling axis extensions for larger diameter tools
- Cardanic joint for rotary head
- Pull control and overload protection for pulldown winch
- Arrangement for casing oscillator
- Casing oscillator GCL 1300
- Measurement and visualization of extraction force
- Rotating cleaner hydraulically operated
- Star cleaner
- Lower guide with hydraulic opening
- Hydraulic vibrator for cages
- Feed control
- Instrument for measuring, displaying and recording of drilling parameters. Complete with software for processing data on PC
- Instrument for continuous extraction
APPLICATIONS
BORED PILES | ||
Max depth | 57 m | |
Max. diameter under mast | 3000 mm | |
Max. diameter uncased – Crowd ram | 1500 mm | |
Max. diameter uncased – Crowd winch | 1180 mm | |
Max. diameter with casing oscillator | 1300 mm | |
CFA PILES | ||
Max depth | 25 m | |
Max. diameter | 900 mm | |
DISPLACEMENT PILES | ||
Max. depth | 22,5 m | |
Max. diameter | 420 m | |
SOIL MIXING | ||
Max. depth | 22,5 m | |
Max. diameter | 1000 mm | |
FEATURES
3-YEAR WARRANTY 4,500 HOURS OF GUARANTEED OPERATION
The peace of mind of owning equipment designed for long-lasting durability, covered by a 36-month warranty and guaranteed to deliver at least 4.500 hours of flawless operation. This is one of the many ways we ensure that those who choose us can always rely on our unwavering support.
CDR - Casagrande Data Recorder
The CDR monitoring system of the drilling process, allows for the detection and recording of the working parameters. These data can be analyzed and processed to generate detailed jobsite reports.
SPM Smart Power Management
The ability to intelligently manage engine power according to each specific function translates into greater efficiency and productivity. A dedicated system continuously detects the required power, increasing it to its maximum level only when necessary. This ensures a more responsible and sustainable use of energy.
ENVIRONMENT AWARENESS
The latest-generation Stage V diesel engines reduce pollutant emissions and allow operation with both low-sulfur fuels and HVO (Hydrotreated Vegetable Oil)—a high-performance, low CO2 emission fuel taken from waste animal fats and used vegetable oils. Like many other Casagrande rigs, the CB20 is also available in full-electric and hybrid versions.
CFM - Casagrande Fleet Master
The CFM system, developed and refined in collaboration with Vodafone, instantly detects any alarms or malfunctions through an online platform accessible from PCs, tablets, and smartphones. Thanks to the standard integration of Vodafone Business connectivity, real-time monitoring enables immediate intervention in case of failures, significantly reducing downtime and optimizing the rig productivity.

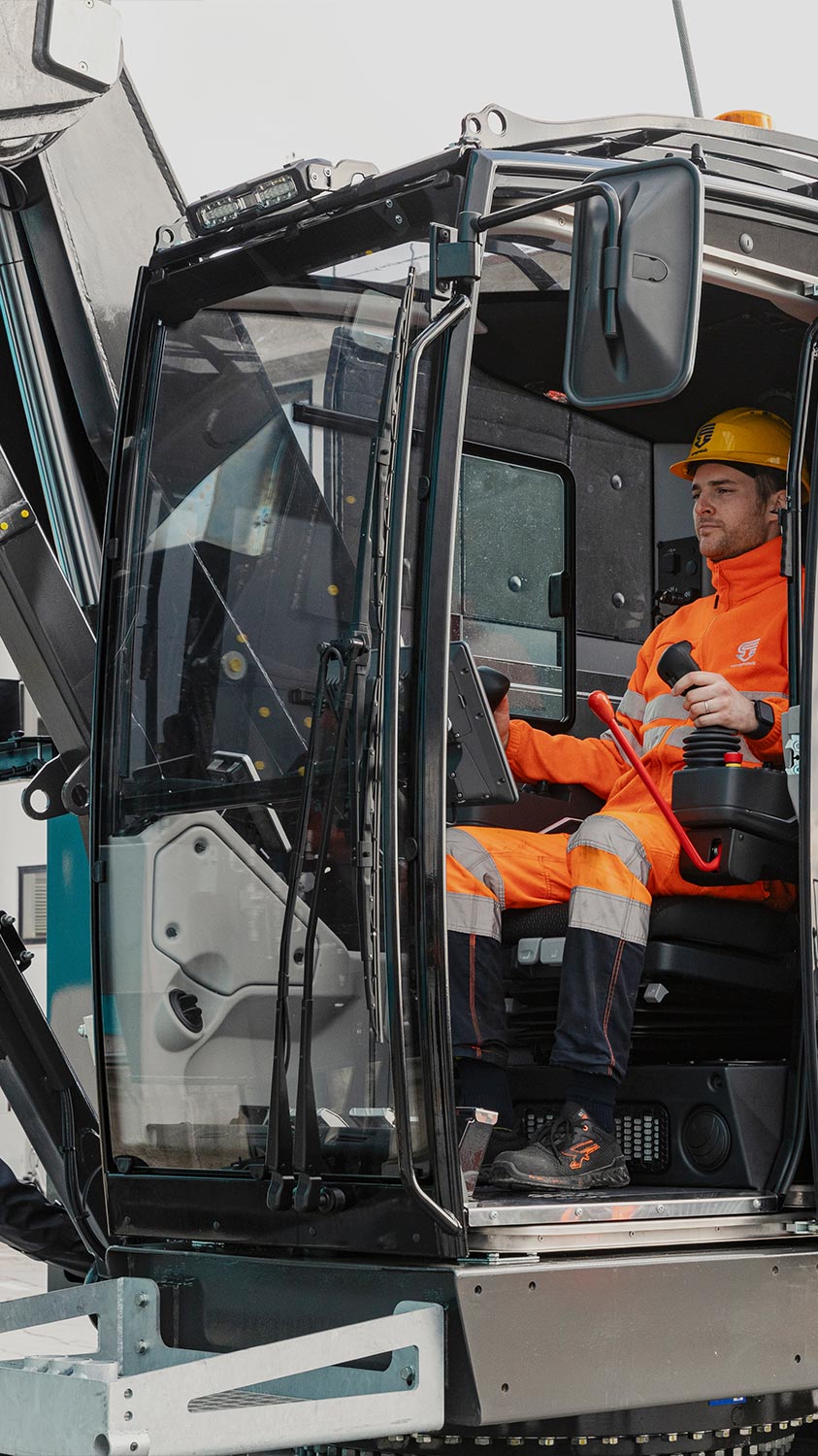

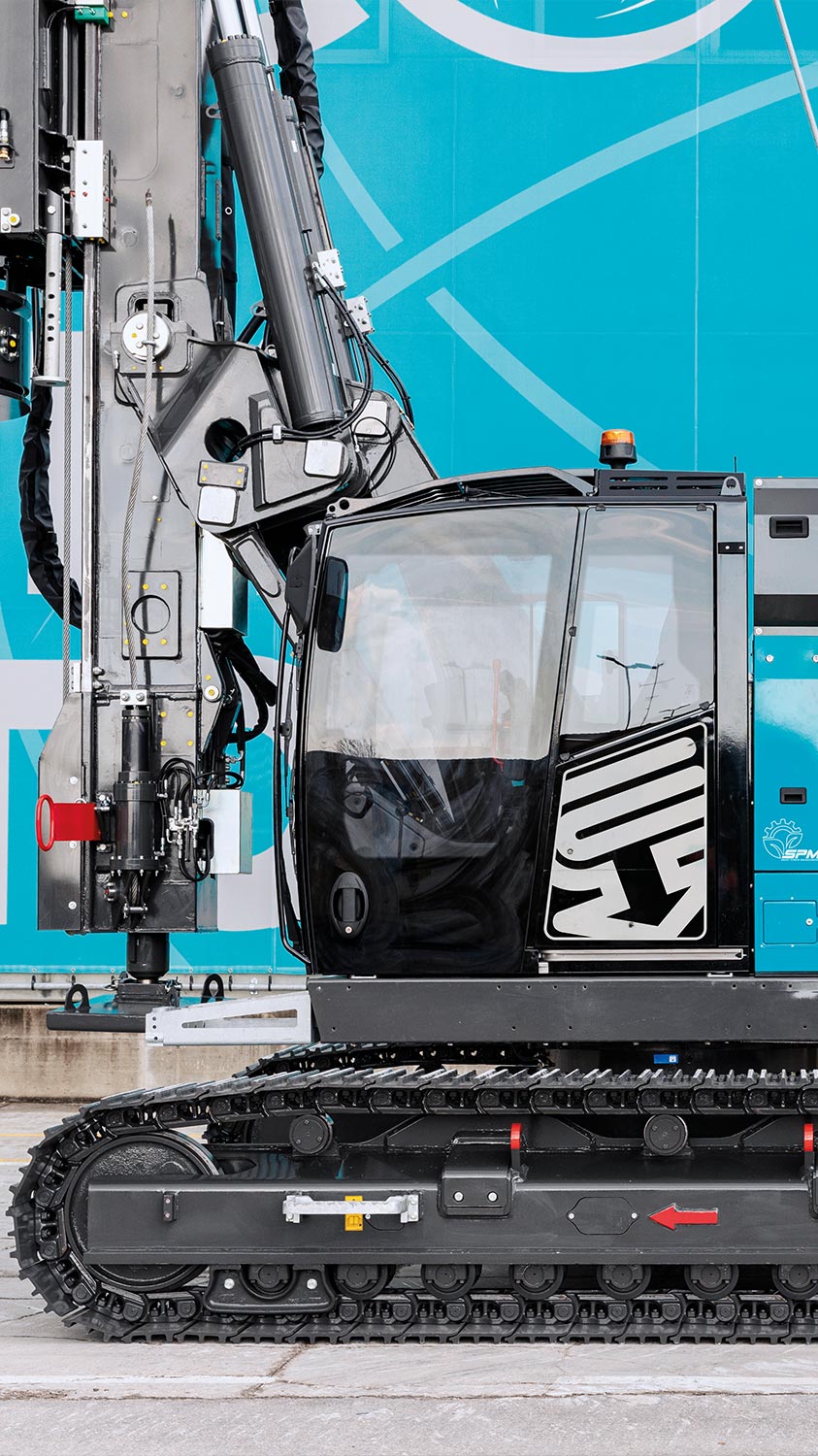

ERGONOMIC CABIN WITH HIGH VISIBILITY AND ACOUSTIC COMFORT
The cabin is designed to enhance operator comfort, reducing fatigue and increasing productivity while ensuring excellent visibility. It is also soundproofed to ensure optimal acoustic comfort and equipped with a new climate control system, which is quieter, more powerful, and specifically directed at the most exposed body areas. Additionally, the rig’s intelligent heat exchangers significantly reduce the noise generated by the cooling system.

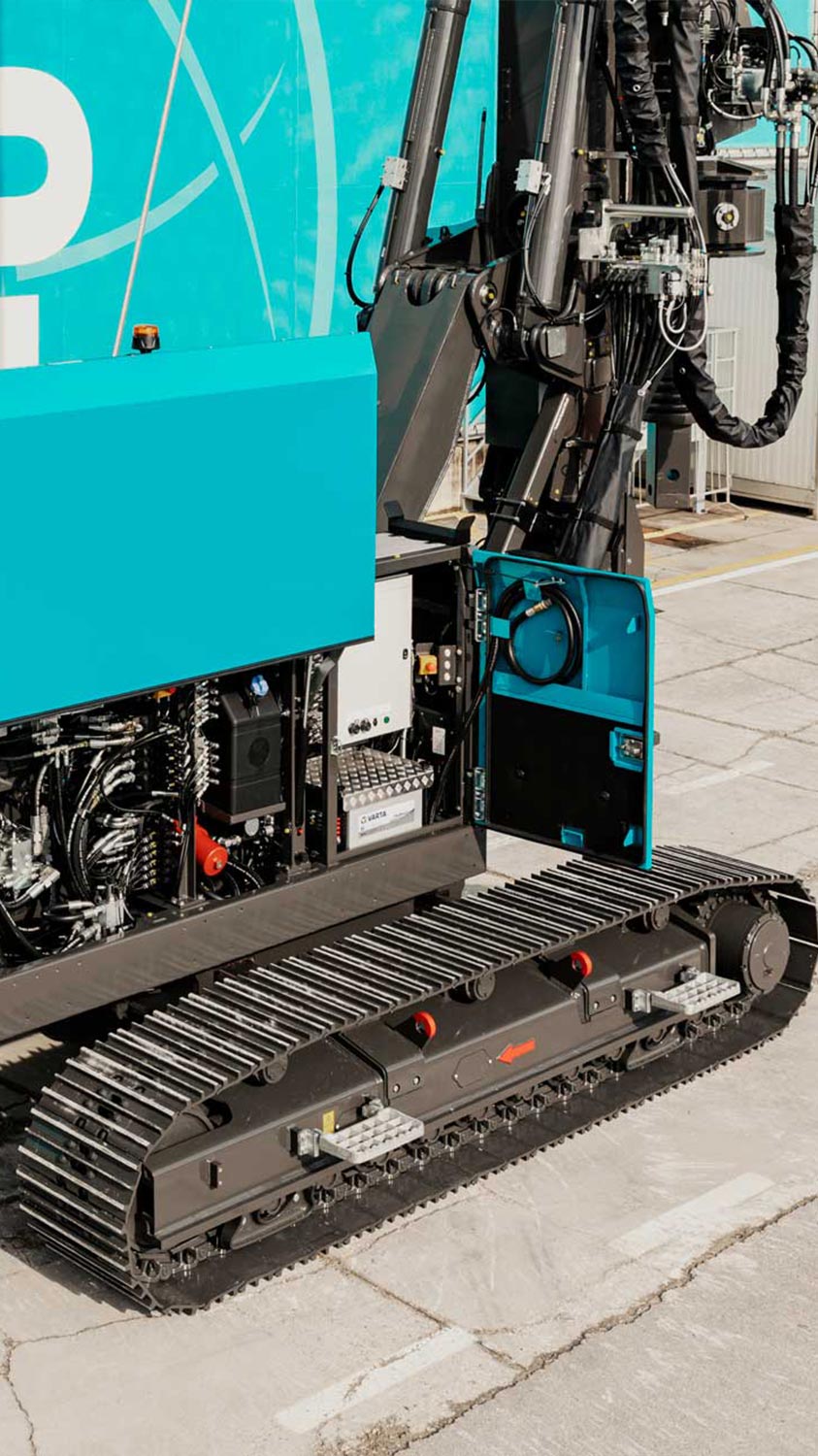

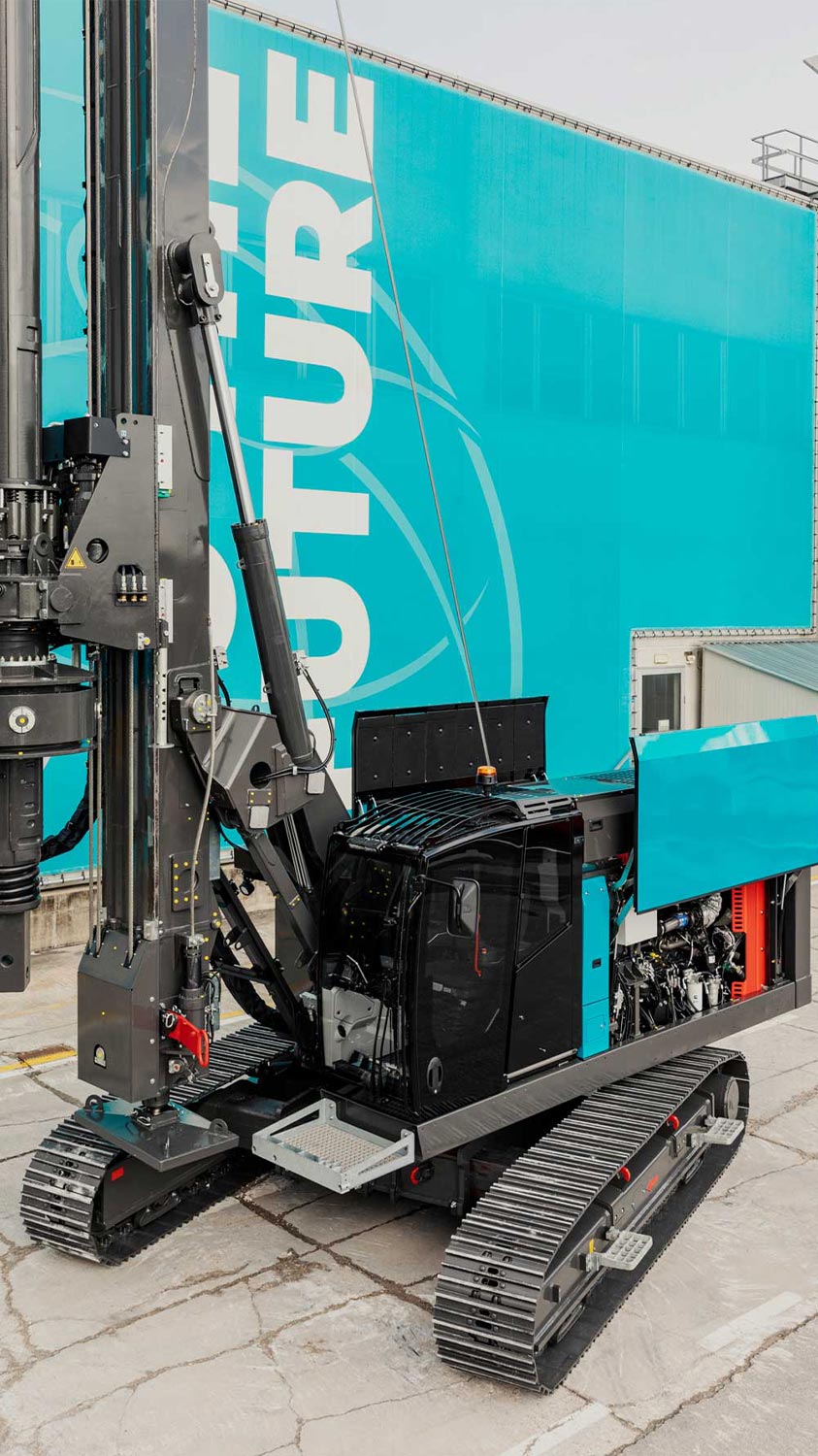

EASIER AND SAFER MAINTENANCE
The hydraulically lifting cover panels provide easy access to components for inspection and maintenance. Additionally, the optional platforms and safety railings further enhance operator safety during these tasks. Optional cameras offer a detailed view of the work area, improving visibility and facilitating maintenance operations.
REMOTE CONTROL
The remote control, which allows to perfectly manage all rig movements, enhances the operator’s safety during loading and unloading operations from transport vehicles and during the setup phases for work.
AUTOMATED DRILLING WITH REAL-TIME PROGRESS VERIFICATION
The automated drilling functions available on the rig, in addition to simplifying its operation, allow the operator to stay updated in real-time on the drilling process progress through an in-cabin display. The process is continuously monitored through precise data on depth, torque, pressure, and verticality.
OPTIMAL OPERATION IN COLD ENVIRONMENTS
The rig can be equipped with a kit that ensures optimal machine performance and maximum efficiency even in particularly cold environments. This includes hydraulic oil with stable viscosity and thermal properties, a hydraulic oil preheating device, and an enhanced climate control system for the cabin.
SIMPLIFIED AND CUSTOMIZED USABILITY
The controls, in addition to being characterized by simple and intuitive functionality, are customizable. Thanks to this, each operator can create their preferred control system, avoiding potential operational errors and enhancing the safety of the operations.
AUTOMATIC GREASING SYSTEM
The automatic greasing system continuously ensures optimal lubrication of all moving mechanical parts, helping them function perfectly and extending their life.
