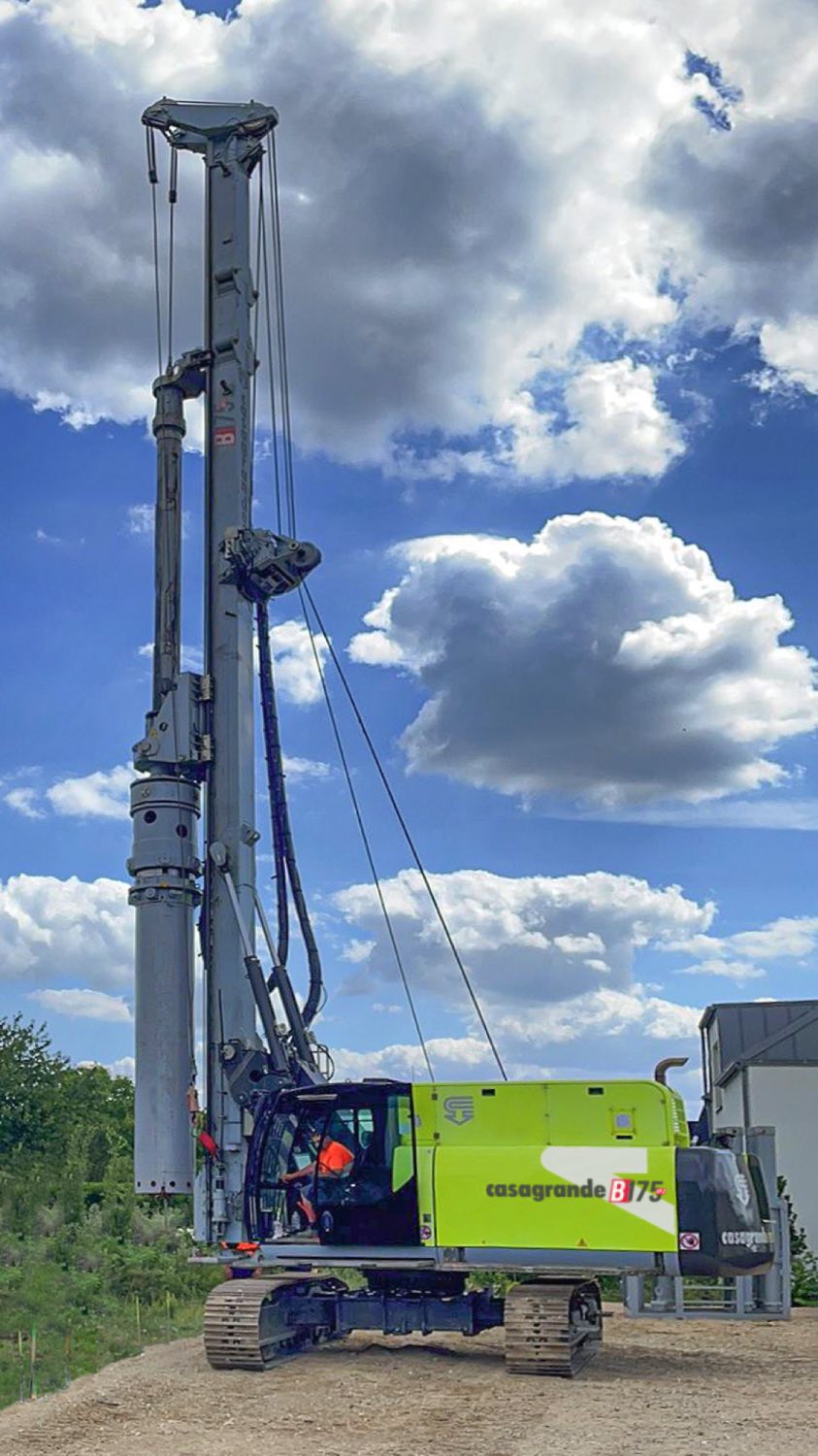

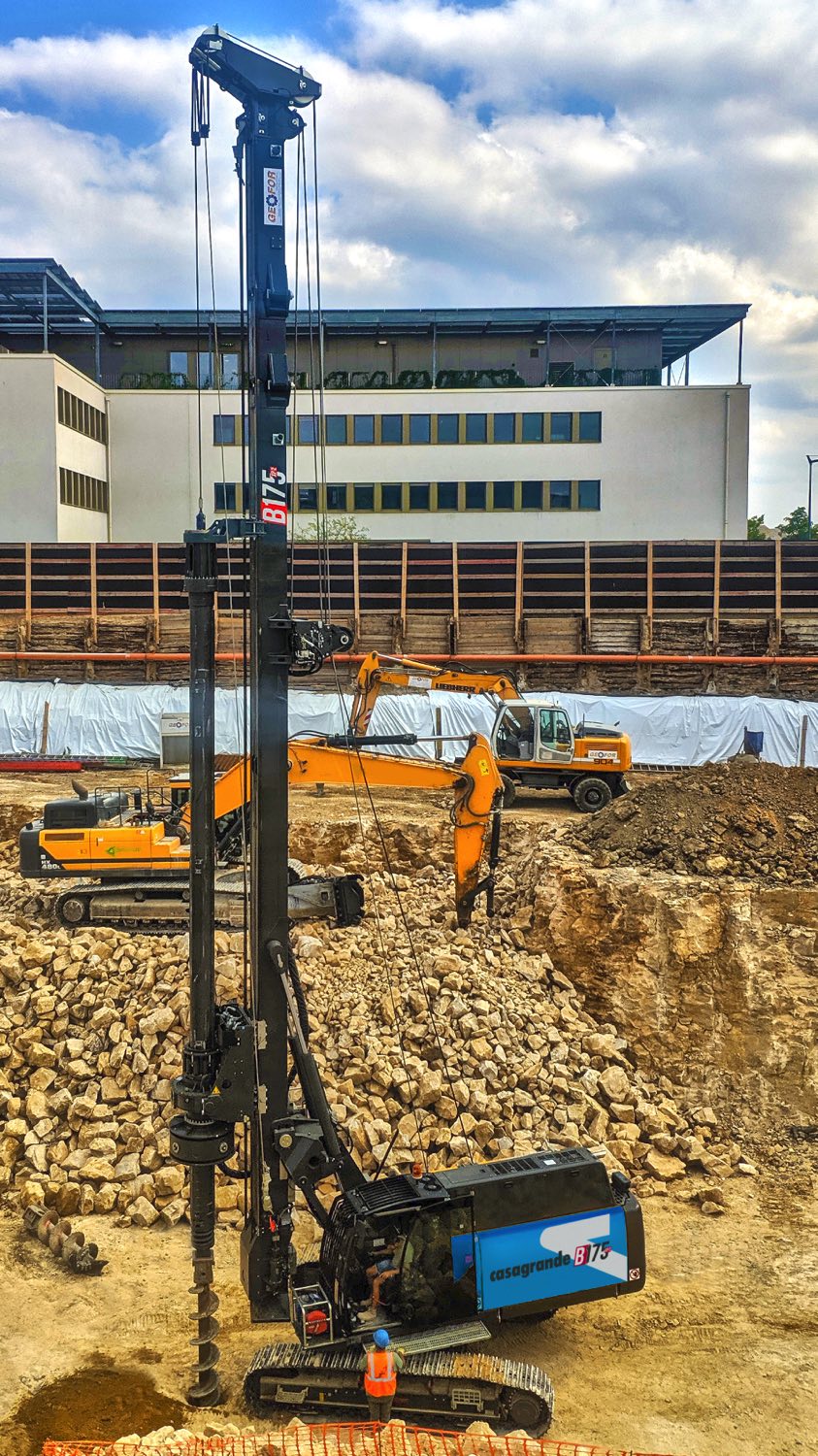

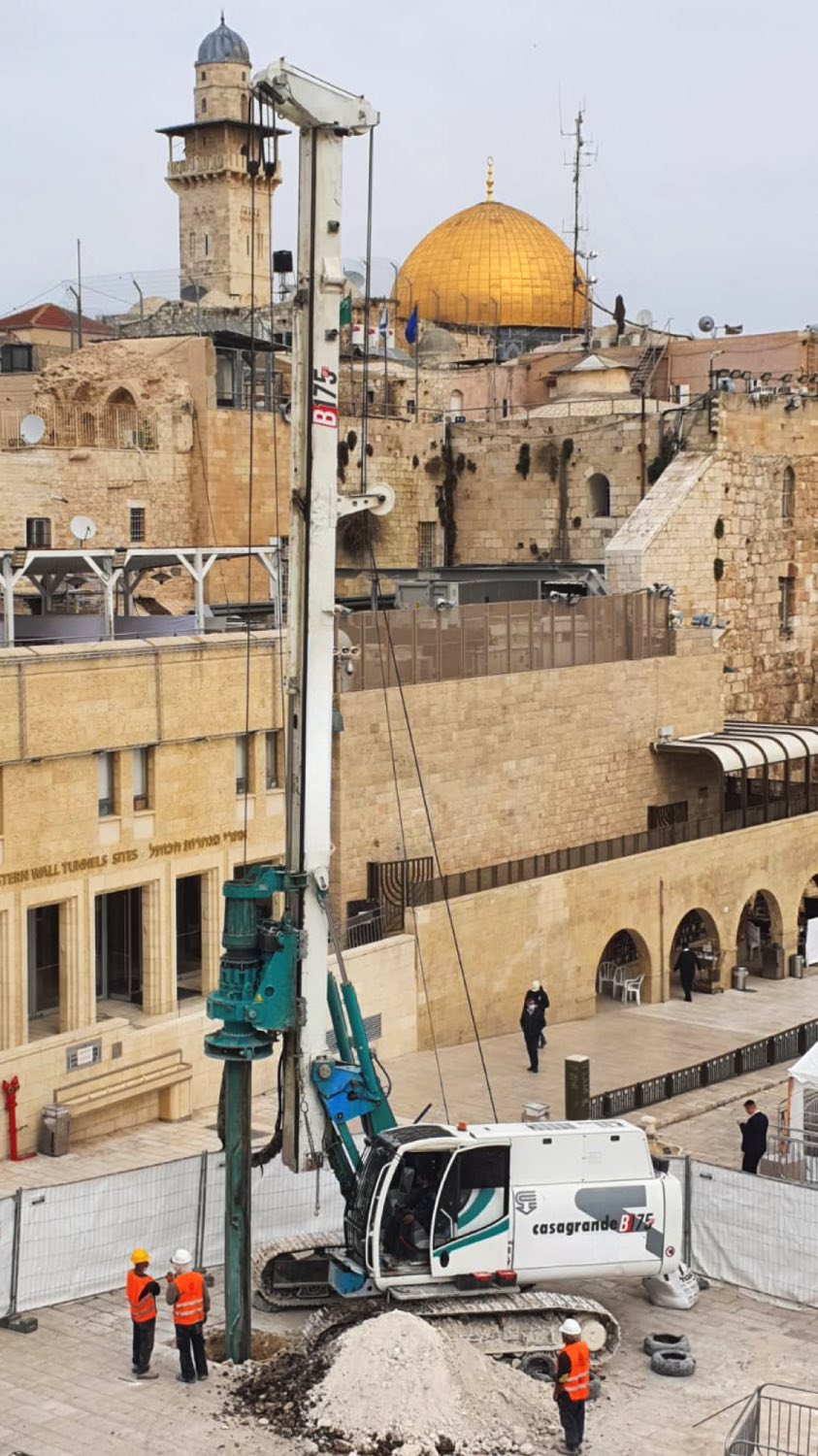

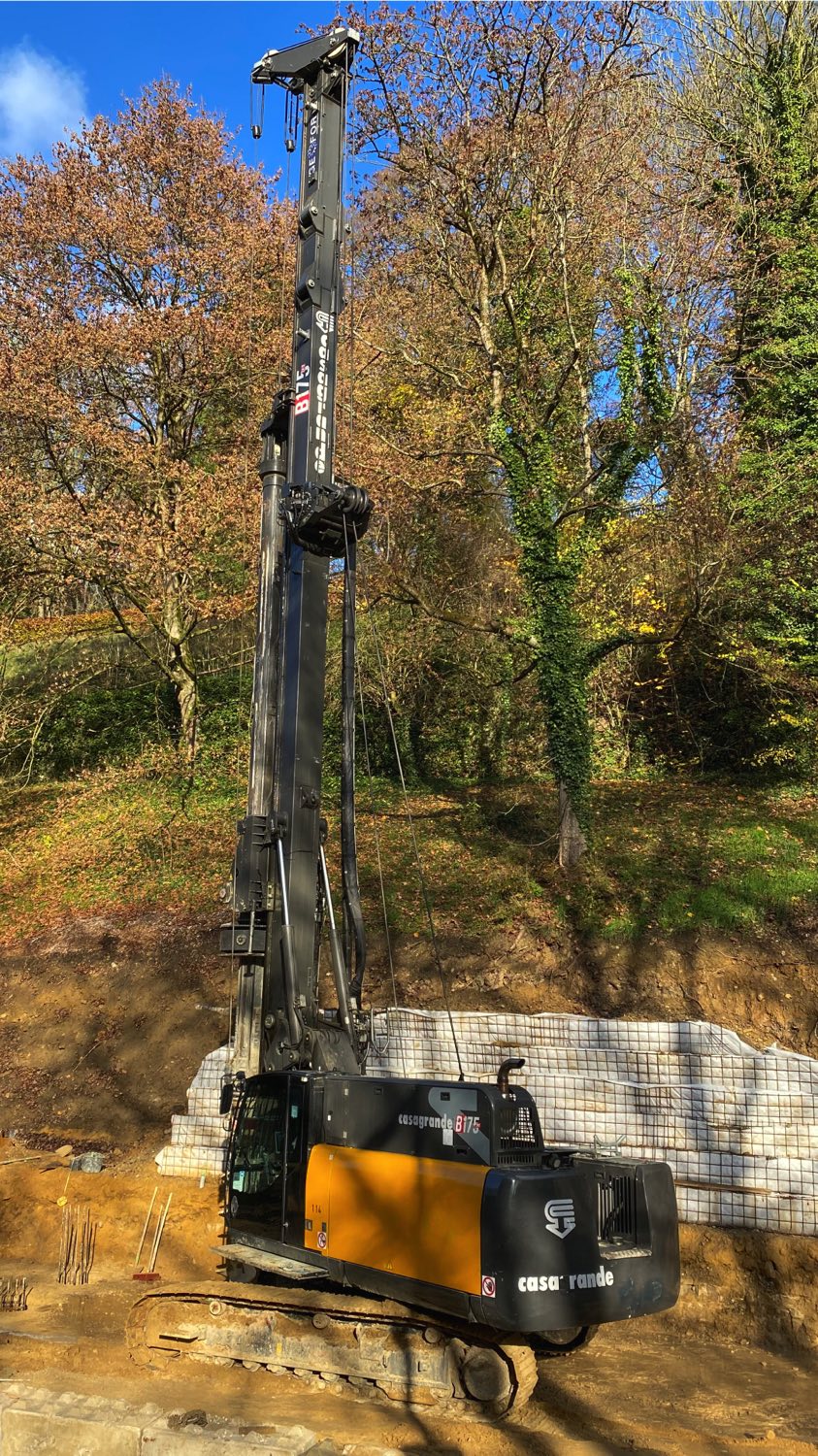

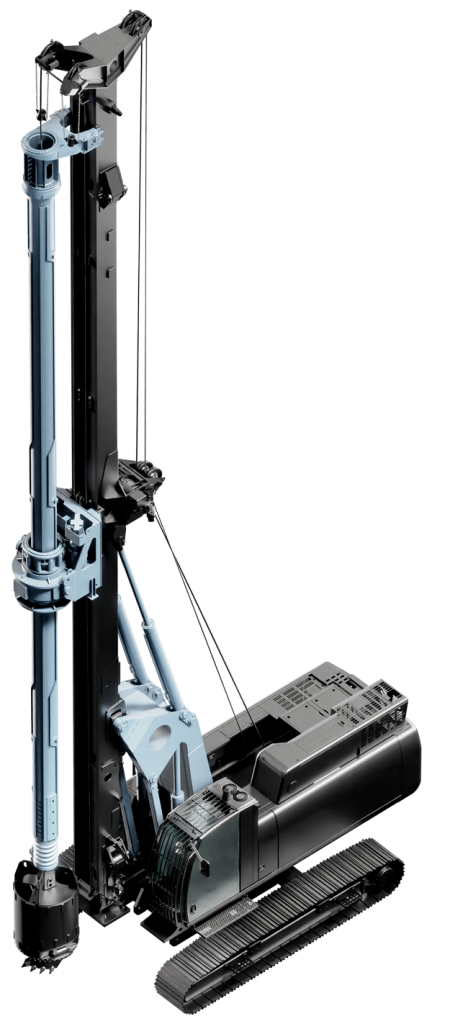

B175 XP-2
TECHNICAL SPECIFICATIONS
B175 XP-2 | ||
Max depth | 57 m | 187 ft |
Max diameter | 3000 mm | 118 in |
Engine power | 209 kW | 280 HP |
Width of crawler | 2500÷3700 mm | 8.2÷12.1 ft |
Shoes width | 600 mm | 24 in |
MAIN WINCH | ||
Line pull | 165 kN | 37,100 lbf |
AUXILIARY WINCH | ||
Line pull | 73 kN | 16,400 lbf |
CROWD – RAM | ||
Extraction force | 205 kN | 46,000 lbf |
Crowd force | 130 kN | 29,200 lbf |
Stroke | 5200 mm | 17 ft |
CROWD – WINCH | ||
Extraction force | 335 kN | 75,300 lbf |
Crowd force | 335 kN | 75,300 lbf |
Stroke | 14000 mm | 46 ft |
ROTARY HEAD | ||
Torque | 175 kNm | 129,070 lbf·ft |
Drilling speed | 32 rpm | 32 rpm |
WEIGHT | ||
Working condition | 44 t | 97,000 lbs |
- SPM control system – Smart Power Management
- 12″ touchscreen display for visualization and setting of drilling parameters
- Mast lifting and lowering aid
- Drilling depth measurement and automatic mast verticality control
- Automatic idling mode with engine start/stop for fuel saving
- Rotary shaking system for tool discharge
- Hook on auxiliary line
- Protective roof guard (FOPS compliant)
- Air condition system
- Cab front and side catwalk
- Electric refueling pump
OPTIONAL EQUIPMENT
- Undercarriage with 800/900 mm wide track shoes
- Lateral catwalk and hadrails
- Railing on upperstructure
- Cab front board
- Water pre-heating system for starting engine at low temperature
- Automatic centralized greasing system
- Radio remote control for rigging, derigging, tracking and positioning
- Video unit with two cameras and one 7″ monitor to control winches and the rear of the machine
- Camera for panoramic view of the area around the machine
- Automatic self-alignment on drilling axis
- Casagrande FleetMaster remote rig control and monitoring via internet
- Transport kit according to required transport configuration
- Drilling axis extension to increase the drilling diameter
- Mast extension for extended mast version
- Low headroom arrangement
- Cardanic joint for rotary head
- Main controlled winch 165 kN nominal line pull
- Smart lowering and overload protection for main winch
- Load cell on auxiliary winch for line pull monitoring
- Arrangement for casing oscillator
- Casing oscillator GLL 1000 / GLL 1300
- HD mast support for special arrangements (CFA 28)
- Mast support and undercarriage for CFA 360° arrangement
- Measurement and visualization of extraction force
- Rotating CFA cleaner hydraulically operated
- Star CFA cleaner
- CFA lower guide with hydraulic opening
- Crowd winches for CFA. Max nominal crowd force 2×53 kN
- Hydraulic vibrator for cages
- CFA feed control
- Instrument for measuring, displaying and recording of drilling parameters. Complete with software for processing data on a PC
- Instrument for continuous extraction of CFA
APPLICATIONS
BORED PILES | ||
Max depth | 57 m | |
Max. diameter under mast | 3000 mm | |
Max. diameter uncased – Crowd ram | 1500 mm | |
Max. diameter uncased – Crowd winch | 1200 mm | |
Max. diameter with casing oscillator | 1300 mm | |

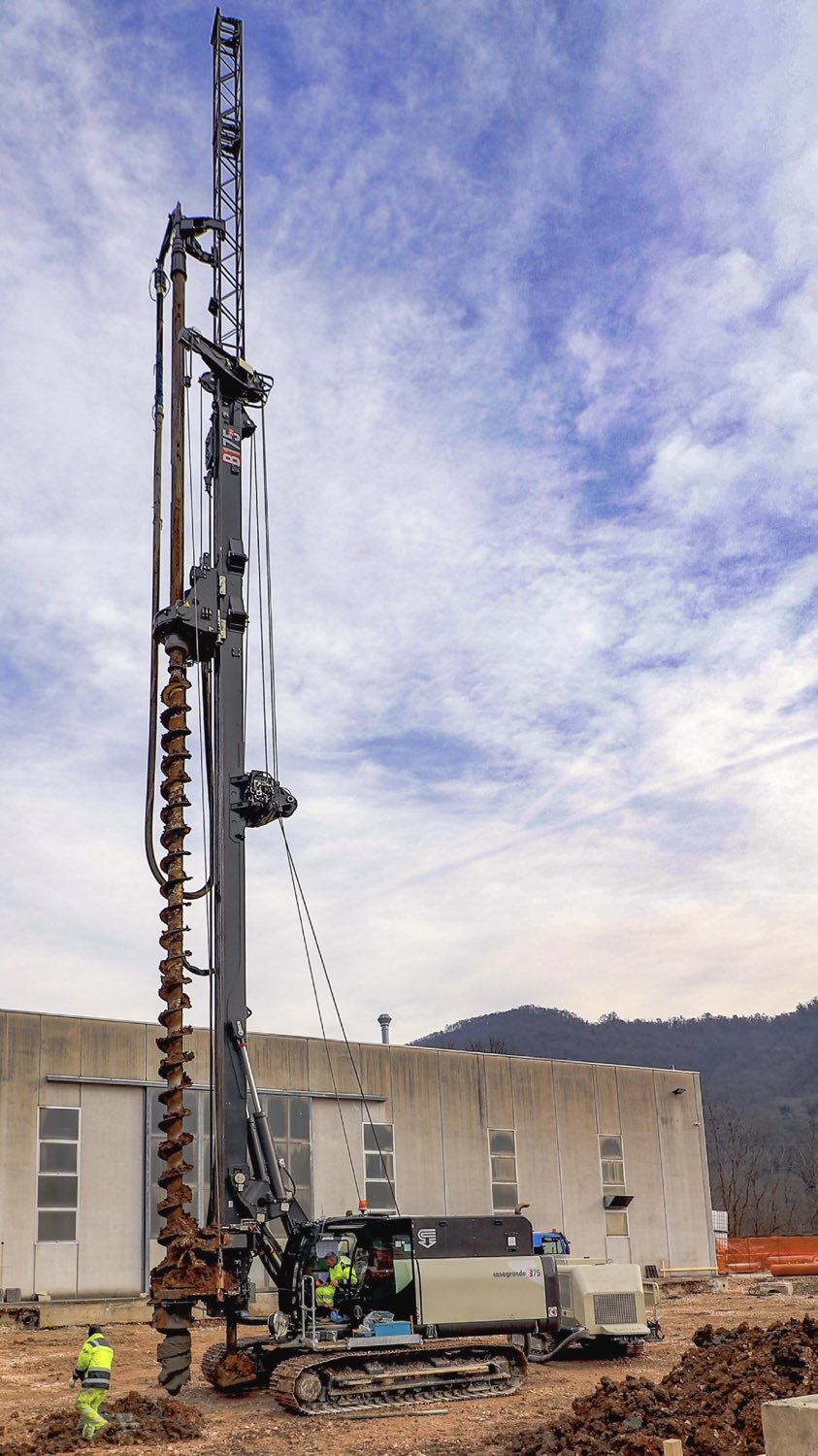

CFA PILES | ||
Max depth | 28 m | |
Max. diameter | 900 mm | |
DISPLACEMENT PILES | ||
Max. depth | 22,5 m | |
Max. diameter | 420 mm | |
SOIL MIXING | ||
Max. depth | 22,5 m | |
Max. diameter | 1000 mm | |
MICROPILING | ||
Stroke of rotary head | 16 mm | |
JET GROUTING | ||
Max. depth with rods loader | 68 m | |
DTH | ||
Max. depth with rod loader | 20 m | |
STONE COLUMNS | ||
Max. depth | 12 m | |
DIAPHRAGM WALL | ||
Max. depth with KRC | 30 m | |
FEATURES
XP-2 SERIES
The XP-2 series uses hydraulic and electronic systems that directly control the hydraulic pumps to achieve efficient, precise and rapid results. The specialist components, along with the enhanced hydraulic layout, optimizes efficiency, leading to reduced load losses and fuel consumption.
CFM - CASAGRANDE FLEET MASTER
The fleet can be managed remotely via an online platform by PC, tablet or smartphone. This includes remote monitoring of any alarms and immediate diagnostics by the After Sales Service Team leading to significant reductions in intervention costs and rig downtime.
ASSISTANCE AND MONITORING
Operators benefit from automation of drilling functions, making the rigs user-friendly with complete control of the drilling process. The cab display provides real-time drilling data progress including depth, torque, pressure and verticality for operator control.
CDR - CASAGRANDE DATA RECORDER
CDR is available for all disciplines of piling and drilling and allows the rig operator to monitor the drilling progress on screen. Work parameters are recorded for subsequent analysis, or for site reports.
PERFORMANCE AND PRODUCTIVITY
The Smart Power Management (SPM) is an engine power management system that improves performance and productivity of the machinery. SPM monitors the power flows drawn from the engine and allocates the maximum available power to the required function.
COMFORT & TECHNOLOGY
The operator cabin is ergonomically designed for user comfort and soundproofing. Smart oil heat exchangers reduce fuel consumption and the overall noise level of the cooling system.
SAFETY AND MAINTENANCE
Hydraulic lifting canopy over the engine for easy access during inspections and maintenance. Optional stairs, platforms and railings provide safe accessibility to every point. Also, optional cameras and display for full visibility of the winches and working area.
ENVIRONMENT AWARENESS
Rigs are powered by the latest generation Stage V diesel engine with reduced exhaust emissions and use of low sulfuric content fuels. Further reduction of CO2 emissions is achievable by using HVO plant-based fuels. Bio-oils of high efficiency and performance are available.
